LM393 Optical Photosensitive Digital LDR light sensor Module – 3 Pin for Arduino Shield DC 3-5V
₹45.00 incl. GST
- Precision Sensing: High-quality LDR for accurate ambient light detection.
- Adjustable Sensitivity: Built-in potentiometer to customize light trigger levels.
- Dual Output LEDs: Onboard indicators for Power and Digital Output status.
- Stable Signal: Features the LM393 IC for a clean, noise-free digital output.
- Universal Compatibility: Works seamlessly with Arduino, Raspberry Pi, and ESP32.
- Wide Voltage Range: Operates efficiently on 3.3V to 5V DC.
- Compact & Ready: Small form factor with a mounting hole for easy installation.
In stock
✨ Exclusive Benefits
🚚 FREE SHIPPING | Orders above ₹999
📦 BULK SAVINGS | Contact us for Special Discounts
📄 TAX SAVINGS | Claim up to 18% GST Credit

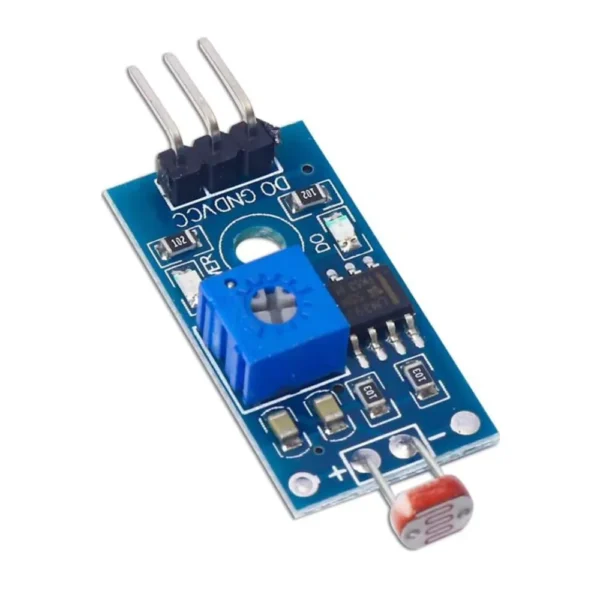

Scienticy LM393 Optical Photosensitive LDR Light Sensor Module
Empower Your Projects with Intelligent Light SensingThe Scienticy LM393 LDR Light Sensor Module is a high-precision, reliable solution designed to detect ambient light intensity with extreme accuracy. Whether you are an electronics hobbyist or a professional engineer, this module is the perfect choice for projects that require automated responses based on lighting conditions.
Advanced Performance & Stability
At the heart of this module is the industry-standard LM393 Voltage Comparator IC, paired with a premium-grade Light Dependent Resistor (LDR). This combination ensures a stable, noise-free digital signal, providing much better performance and consistency than a standalone photoresistor.
Key Features:
- Adjustable Sensitivity: Features an integrated multi-turn potentiometer, allowing you to fine-tune the light threshold. You can precisely set exactly when the sensor triggers based on the darkness or brightness of the environment.
- Dual Status Indicators: Equipped with two onboard LEDs—a Power LED (Red) to confirm the connection and an Output LED (Green) that lights up when the threshold is reached, making debugging effortless.
- Universal Microcontroller Support: Operating on a flexible 3.3V to 5V DC range, it is fully compatible with Arduino, Raspberry Pi, ESP32, ESP8266, and other popular development boards.
- Robust Digital Output: The digital output (DO) can directly drive a relay module or provide a clean signal to a microcontroller, supporting currents greater than 15mA.
- Compact & Easy Installation: Its small form factor and pre-drilled mounting hole make it incredibly easy to install in tight spaces or secure inside project enclosures.

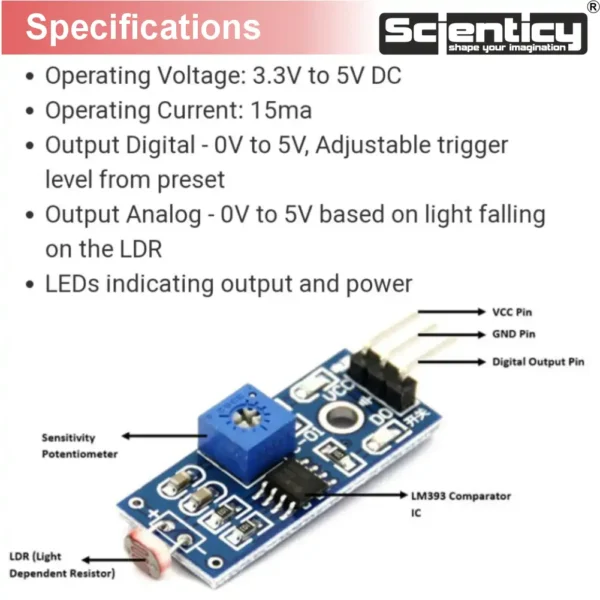

Technical Specifications:
- Sensor Type: Optical Photosensitive LDR (Photoresistor)
- Main Chip: LM393 Comparator IC
- Operating Voltage: 3.3V to 5V DC
- Current Consumption: Low power, approx. 15mA
- Output Format: Digital Switching Output (0 and 1)
- Pin Definition: 3-Pin Interface (VCC, GND, DO)

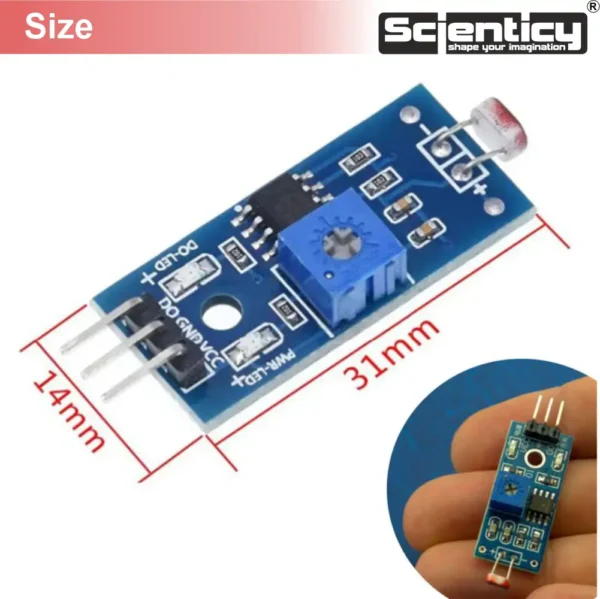

- Dimensions: Approximately 31mm x 14mm
Popular Applications:
- Smart Lighting: Automatic night lamps, street light controllers, and garden lighting.
- Solar Energy: Dual-axis solar tracking systems to maximize panel efficiency.
- Home Automation: Smart curtains that close at sunset or energy-saving room lights.
- Security & Robotics: Laser-based security alarms and light-following robots.
Scienticy: Shape Your Imagination with Quality Components.
| Weight | 100 g |
|---|---|
| Dimensions | 10 × 10 × 5 mm |
Only logged in customers who have purchased this product may leave a review.
