Name: 3 Series 40A 18650 Lithium Battery Protection Board 11.1V 12.6V with Balance for Drill Motor Lipo Cell Module good quality - Scienticy
SKU: COM599A
Price: 158.00 INR
Availability: InStock

3 Series 40A 18650 Lithium Battery Protection Board 11.1V 12.6V with Balance for Drill Motor Lipo Cell Module good quality

(Excluding of GST 18%)

3S 11.1V 12.6V 40A 18650 lithium battery protection board (comes with recovery function-AUTO Recovery)
Application: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650.26650, a polymer lithium battery)
Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current use)
Continuous charge current (upper limit): 20A

In stock

Available Offers

► Free Shipping : On over value Rs.999

► Bulk Quantities discount : contact us

► Tax invoice : Get GST invoice and save up to 18% on business purchases

3 Series 40A 18650 Lithium Battery Protection Board 11.1V 12.6V with Balance for Drill Motor Lipo Cell Module

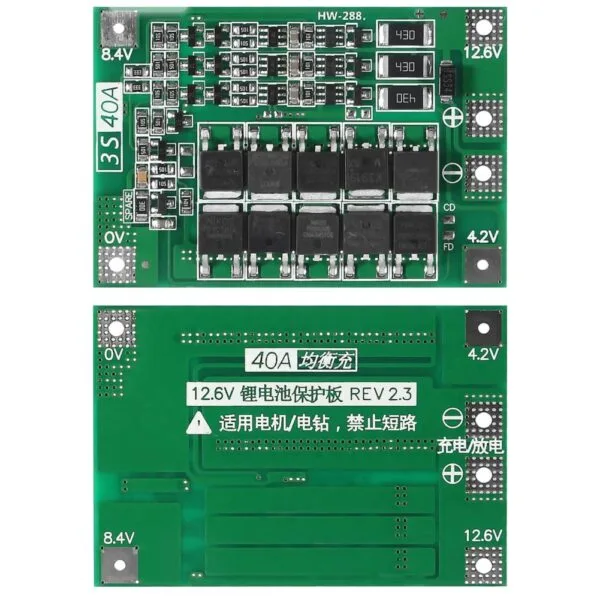

The 3 Series 40A 18650 Lithium Battery Protection Board 11.1V 12.6V with Balance for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube.
It provides a continuous discharge of 40A, 100mA balanced current, for electric drill/sprayer/LED lights/low power inverter.(if the cooling environment is not good, please reduce the load current use).
The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage can be range between 16.8V to 18.1V The board operates smoothly with Continuous charge current of (upper limit): 20A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance).

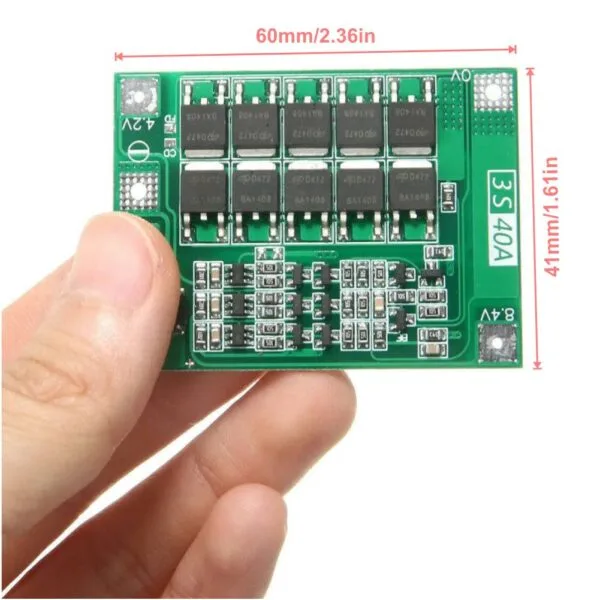

The Board comes in a size of approx. 41 x 60 x 3.4 mm which can be easily installed in a compact size or on battery bundle itself.
